Nicoben’s attic in France

As a newcomer to the forum, here is the result of many years of passion for music. After many years of wandering, MSB was a revelation (after the room that is probably the most important thing): the DACs, the Pro USB/ProISL connection, the Digital Director, and now the S202, which surprised me more than I expected.

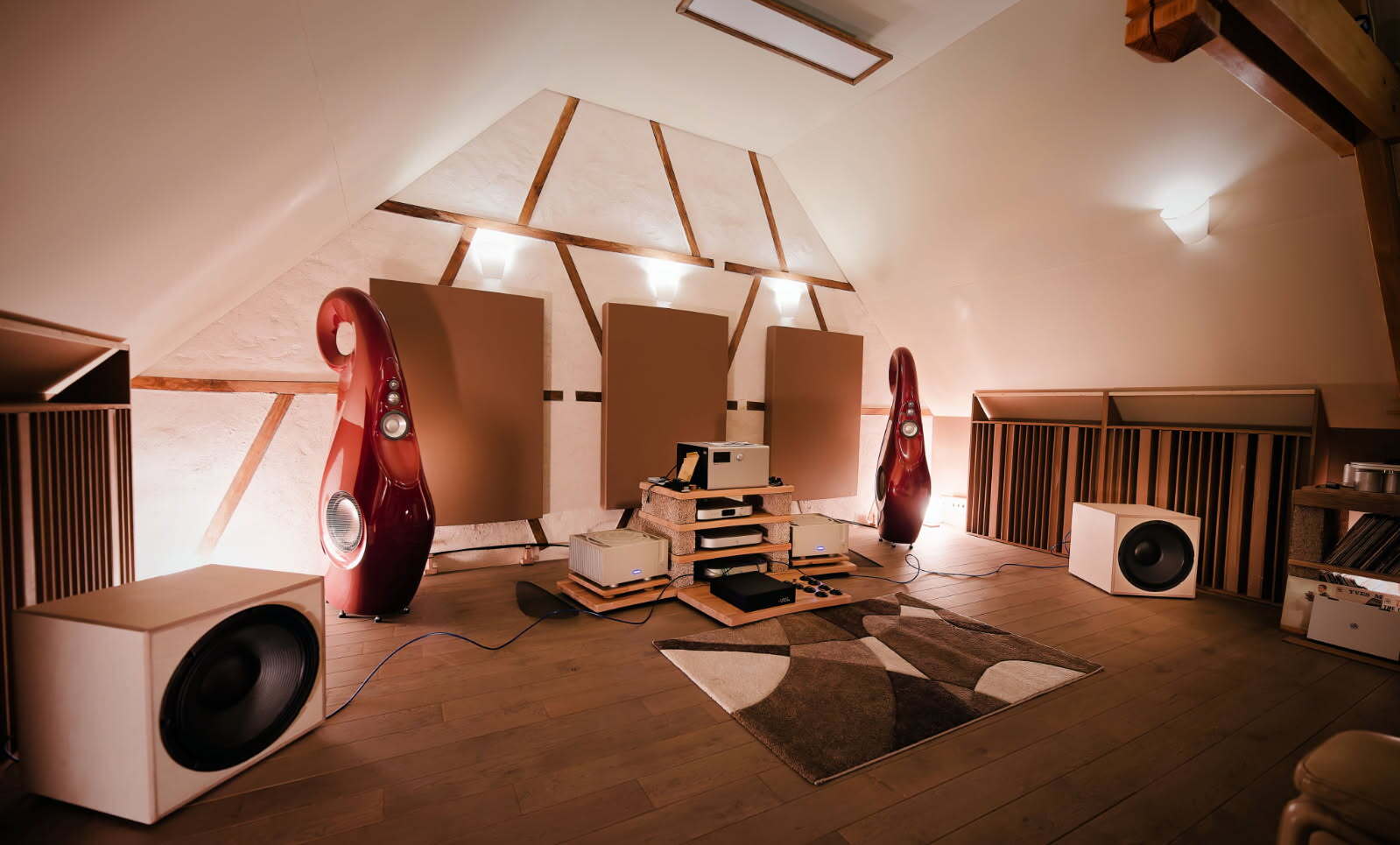

The room was built by me in my garage, with complete acoustic treatment, most of which is hidden behind the fabric stretched across the ceiling and walls. The design and measurements were done by a friend who is an acoustician (Aykoz Audio in France).

System composition:

- MSB Reference (full) + Reference Digital Director

- MSB S202 (newly arrived)

- Ypsilon Aelius (my usual amplifiers before the S202)

- Egglestonworks Andra 3 or Vivid Audio G1 or Leedh E2 Glass, depending on my mood that month.

- Eighteen Sound 18-inch sealed subwoofers with external amplifier/DSP, connected via XLR to a sub output module on the MSB Reference. Calibration to complement the main speakers without time lag and to manage the latest modes in the room’s bass.

- Ypsilon cabling

- Homemade beech/hemp brick rack

- An optical fiber runs from the Digital Director to another room in the house where the Pro USB is connected to a small Ustars C19 (Ropiee) on a linear power supply. Dual USB cable connection with Pro USB powered by an LHY battery power supply. Roon on a Mac Mini M1 controlling the network, or Jplay / minim server. No computer equipment in the audio room.

Having purchased all my equipment second-hand or from showroom displays, I can only dream of upgrading to the Cascade/S500, but that will probably remain a dream. In the meantime, I am living the dream I have built for myself, and I thank MSB for the musical ear of its staff!

Nicolas.

8 Likes

Bravo. This is a really fantastic room setup you have built. I am very curious about your acoustic treatments, rarely have I seen it so thoroughly integrated. I love your bass traps in the outside edges of the room. What acoustic fabric did you end of using for the project? I imagine it must be very transparent as to not add too much high frequency dampening?

I love second hand gear when it comes bikes, motorcyles, and cars… one of the reasons we as a company always support the used market and sales.

How did you land with MSB?

Beautiful room and very nice system. Love that you did the work yourself.

Thank you, Daniel (and Skinzy)

Second-hand cars and motorcycles are my thing too, whether they’re recent models or not (Triumph Spitfire MK3, Honda 250CB from the 1970s downstairs). When it comes to mechanics, I get my hands dirty, but with hi-fi, I rely above all on unfailing reliability over time, then on repairability without excessive costs, which is essential for devices that cost as much as my house did, and that’s where a long term brand’s credibility lies, in my humble opinion.

I find it difficult to strike a balance between life and the absence of harmful interference from the direct field of the speakers by the reverberated field in a room. I am no exception to this difficulty; no two acousticians will offer the same solutions. My room aims for maximum clarity across all frequencies with excellent reverberation time consistency down to fairly low bass frequencies and a homogeneous reverberant field that is decoupled from the music. The treble is not overly dampened compared to other frequencies, but to achieve these results, the room is fairly muted (reverberation time slightly under 3 seconds). The life of the music in the room depends more on the speakers than in other rooms, depending on their energy distribution and directivity. The 4-way Vivid G1 speakers with wide dispersion are the most effective at producing a grandiose sound image.

The bass traps at the bottom of the crawl space and the dimensions of the room mean that I don’t have a “bump” below 100Hz, but rather a decreasing curve, even with the Andra going down to 18Hz -3dB, which allowed me to integrate the subwoofers with DSP without affecting the direct playback from the speakers via the MSB Reference. The subs fill in gaps and a few dips, without ever rising above the average level of the speakers.

The QRD diffusers are made of medium-density fiberboard for the large side panels, while the others are made from 30mm polystyrene sheets cut with a band saw and glued to the walls of the room (frequencies treated above the thresholds where the mass of the material matters).

The bass traps are made of dual-density fireproof rock wool ( Rockfeu REI 120 RsD - isolant sous-faces dalles béton | ROCKWOOL ) wedged between fir rafters to act as a membrane. Glass wool is spread across the bottom of the crawl spaces.

The room’s absorbent panels are 80mm high-density rock wool acoustic tiles. Their rigidity and mechanical strength also allow them to be wedged between two fir rafters to act as a membrane without touching the walls of the room and lowering the absorption frequency (https://www.eurocoustic.com/fr/plafonds-modulaires/acoustished).

The finish is achieved using SWAL strips, or by stapling onto a plywood structure for wall panels, with Camira Lucia acoustic fabric. ( Lucia T2T ; Nos Produits : Clip SWAL® CSW 108 Plus Blanc, Baguettes de tension ).

I am keeping a few options open for final adjustments, such as transforming the absorbent wall or ramp panels into diffusers, depending on the speakers chosen and the desired sound balance. Perfection lies in intentions, never in real life, which is full of compromises.

As for the path that led me to MSB… I would say it was the cumulative experiences that led me to get tired of hearing source output stages, preamp amplification stages, the difficulties in achieving full coherence with separate components, the good experiences I had with many simple integrated devices, my growing preference for all the R2R sources I had for their better respect of timbres, the fact that I have a quiet listening room, which allows for a net gain in the perception of the dynamic range of music and the soundscapes of the recordings, and my total rejection of other manufacturers’ failure to address problems such as network pollution, embedded computing in streamers, digital connections, creating costly needs external to the DAC, and poor internal clock circuits that require the use of external clocks… whereas an external clock signal does not seem logical technically in dematerialized audio. All of this led to the specifications that represent MSB’s work.

Opportunities followed, with a friend buying a Premier, shared listening sessions, then further opportunities for me with the Reference, then the Director, and finally the S202.

But ultimately, what led me to MSB was …. music.

Nicolas.

2 Likes

I love the space you’ve created. It’s achieved a cozy feel that is warm and inviting while remaining very minimal and uncluttered. You’ve created a full range of acoustic treatments and have put in the extra work to integrate them so finely into the space that they do not take away from the experience of the system/room.

Thanks Kevin, that’s a good summary of the goal I set for myself.

Having worked three eight-hour shifts a day for twenty-eight years, I wanted a peaceful and harmonious place, with well-designed but refined equipment and room, without having to worry too much about gear combinations, a room and system where time and stress disappear, allowing me to take long naps in a quiet musical atmosphere, as well as blast symphonies and electronic music without waking my wife on the other side of the wall in the house. I’ve almost achieved my goal.

1 Like
